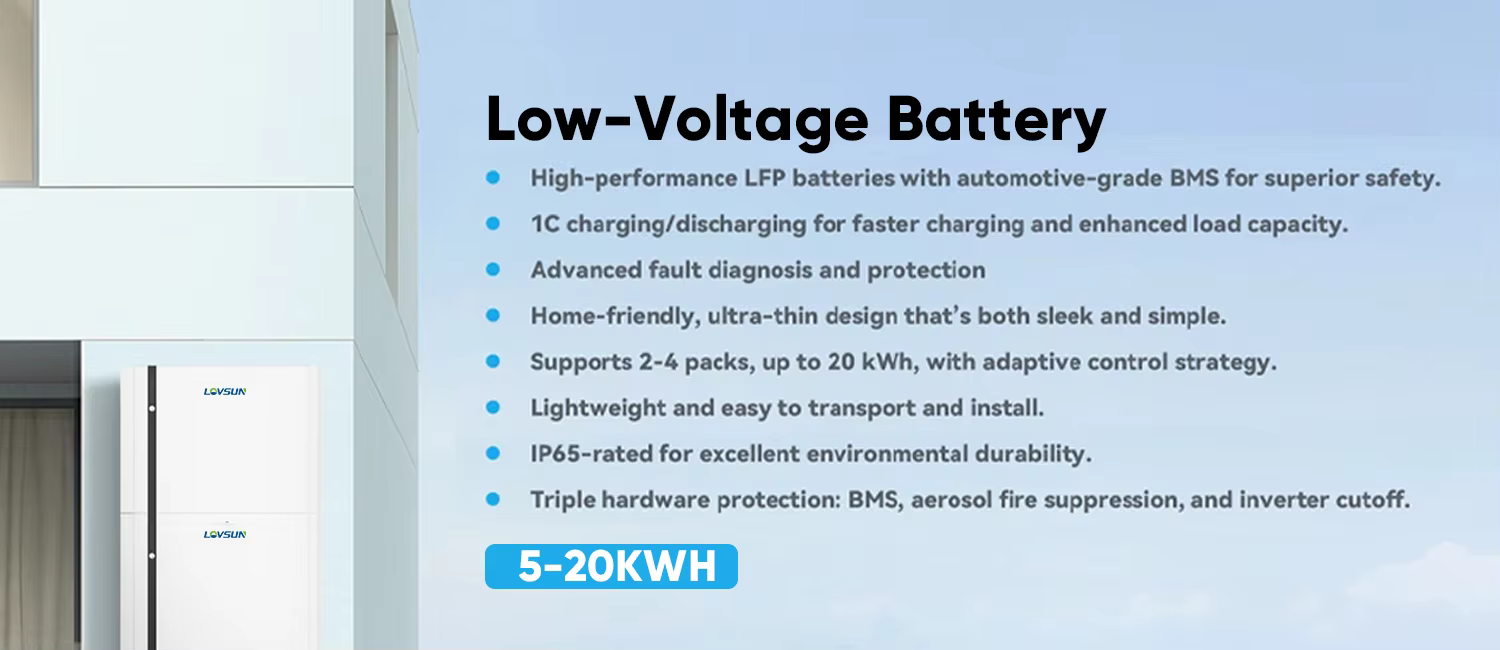

Lovsun Low Voltage Solar Energy Storage Battery 5kwh 10kwh 15kwh 20kwh LiFePO4 Stackable Lithim Battery for Home Solar System

Lovsun Low Voltage Solar Energy Storage Battery 5kwh 10kwh 15kwh 20kwh LiFePO4 Stackable Lithim Battery for Home Solar System

Inquiry

  • Overview

  • Inquiry

  • Related Products

Product Description
Specification
Model
ESS-LB5
ESS-LB10
ESS-LB15
ESS-LB20
Battery Module
LB5(5.12kWh,51.2V,50kg)

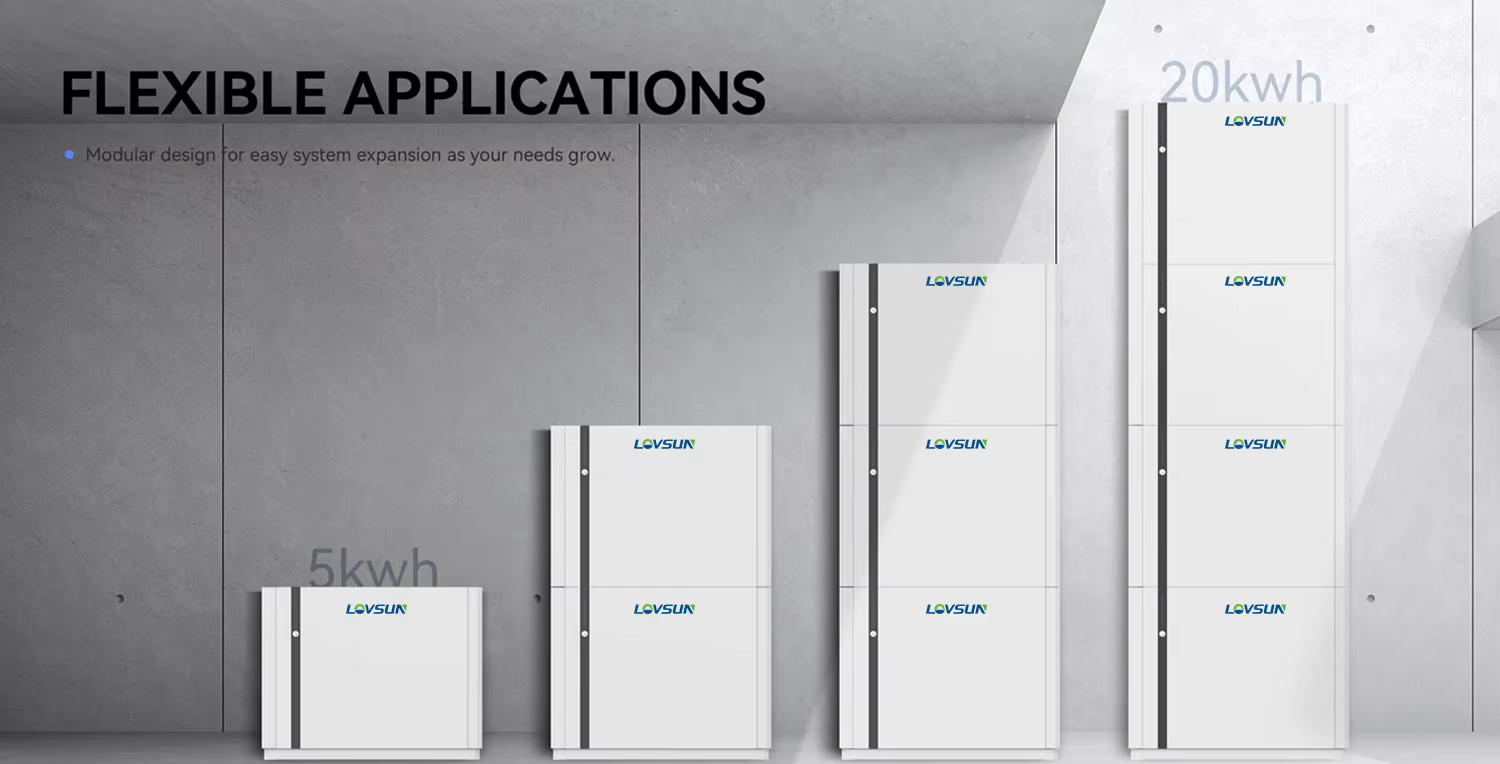

Number of Module
1
2
3
4
Energy Capacity
5.12kWh
10.24kWh
15.60kWh
20.48kWh
Usable Capacity
4.61kWh
9.22kWh
14.04kWh
18.43kWh
Dimension
720/160/656mm
720/160/1095mm
720/160/1625mm
720/160/2155mm
Weight
55kg
105kg
155kg
205kg

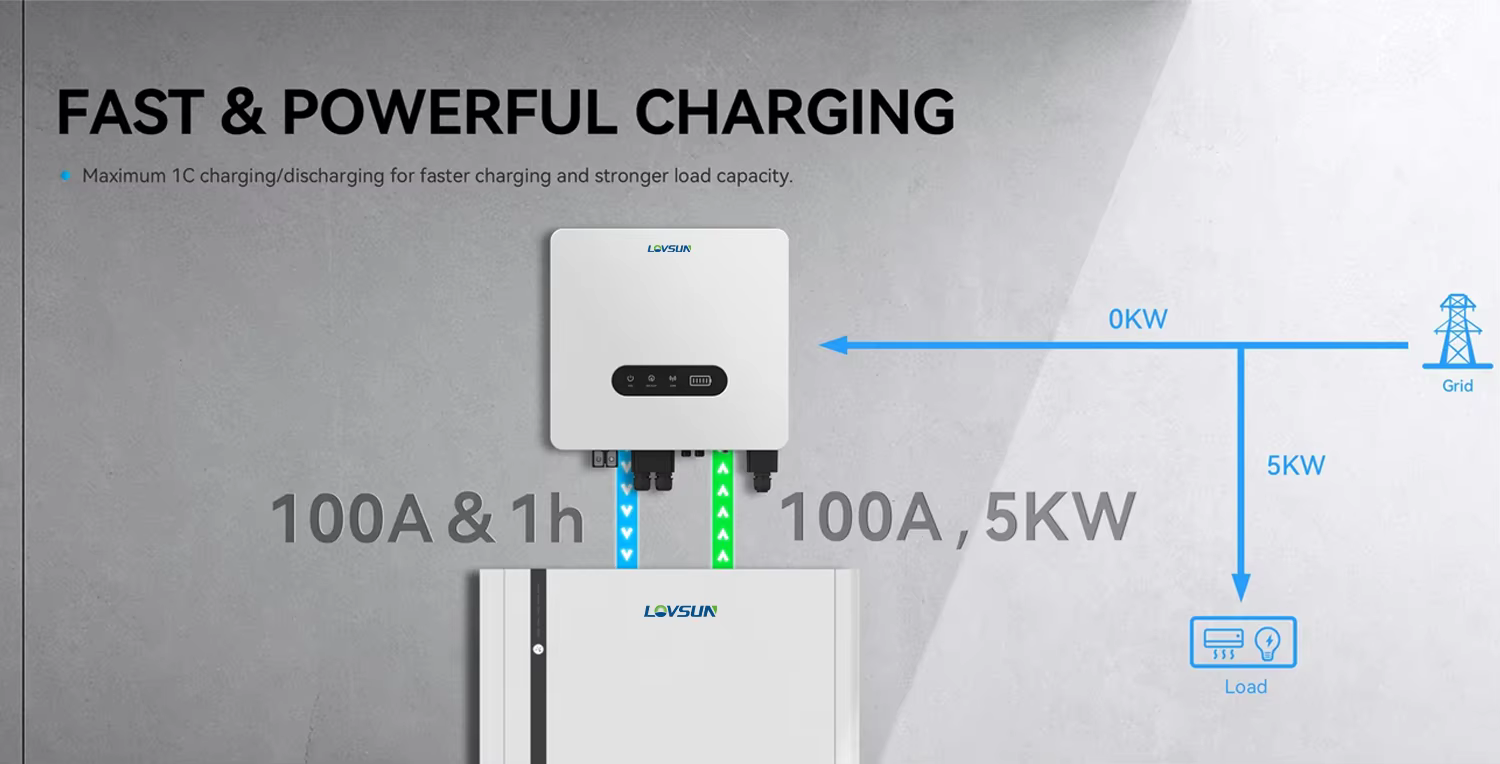

Standard Charge/Discharge Current
50A
100A
120A
120A
General
Battery Type
LFP
Nominal Voltage
51.2V
Operating Voltage Range
47.2-56.8V
IP Protection
IP65
Installation
Wall-mouted or Floor installtion
Operation Temperature
-10~ 50°C*2
Features
BMS Monitoring
SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Communication Port
CAN
Warranty: 10 years
Yes/optional
Certification
IEC62619(Cel&Pack), CE,CEC, RCM, UN38.3
Features

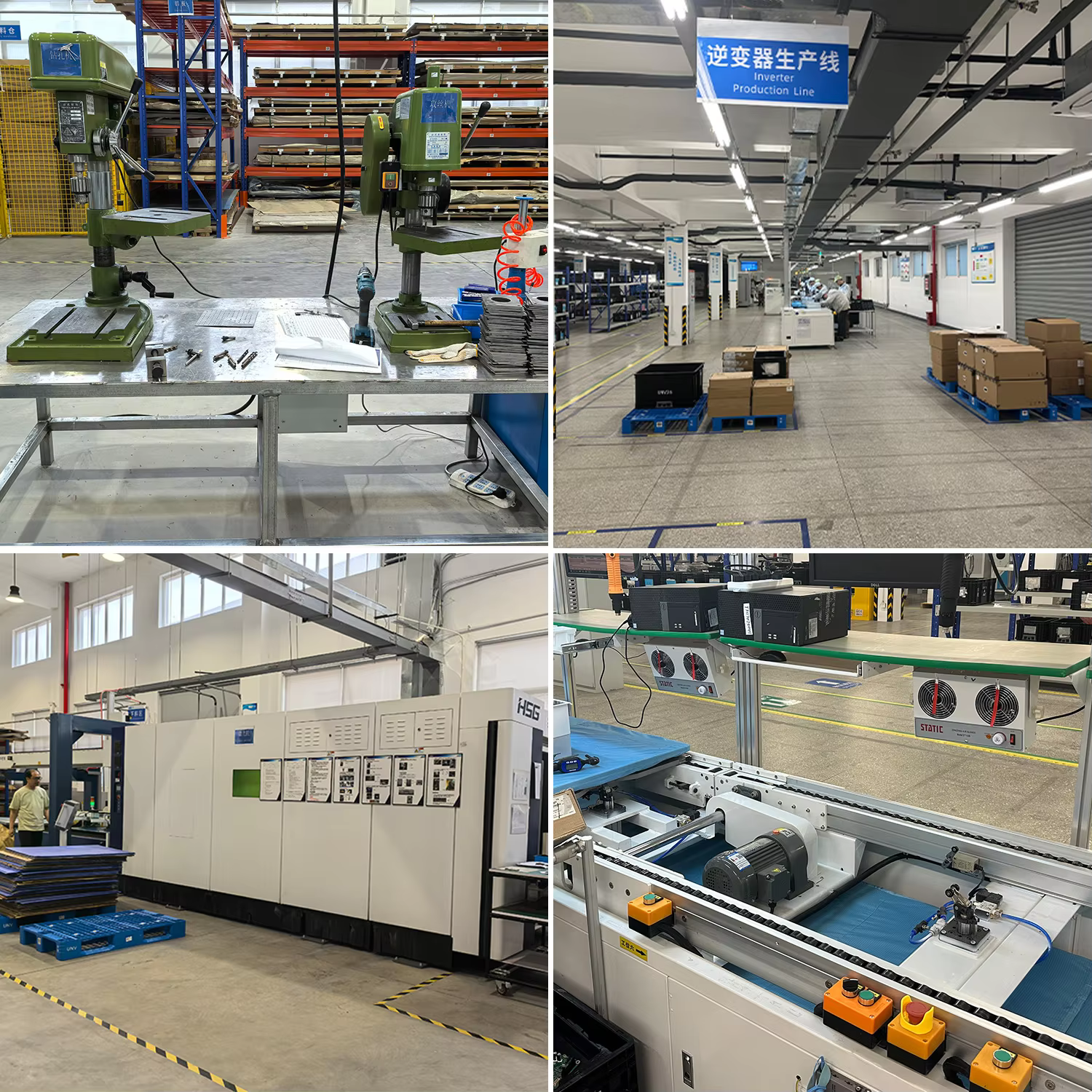

Factory
