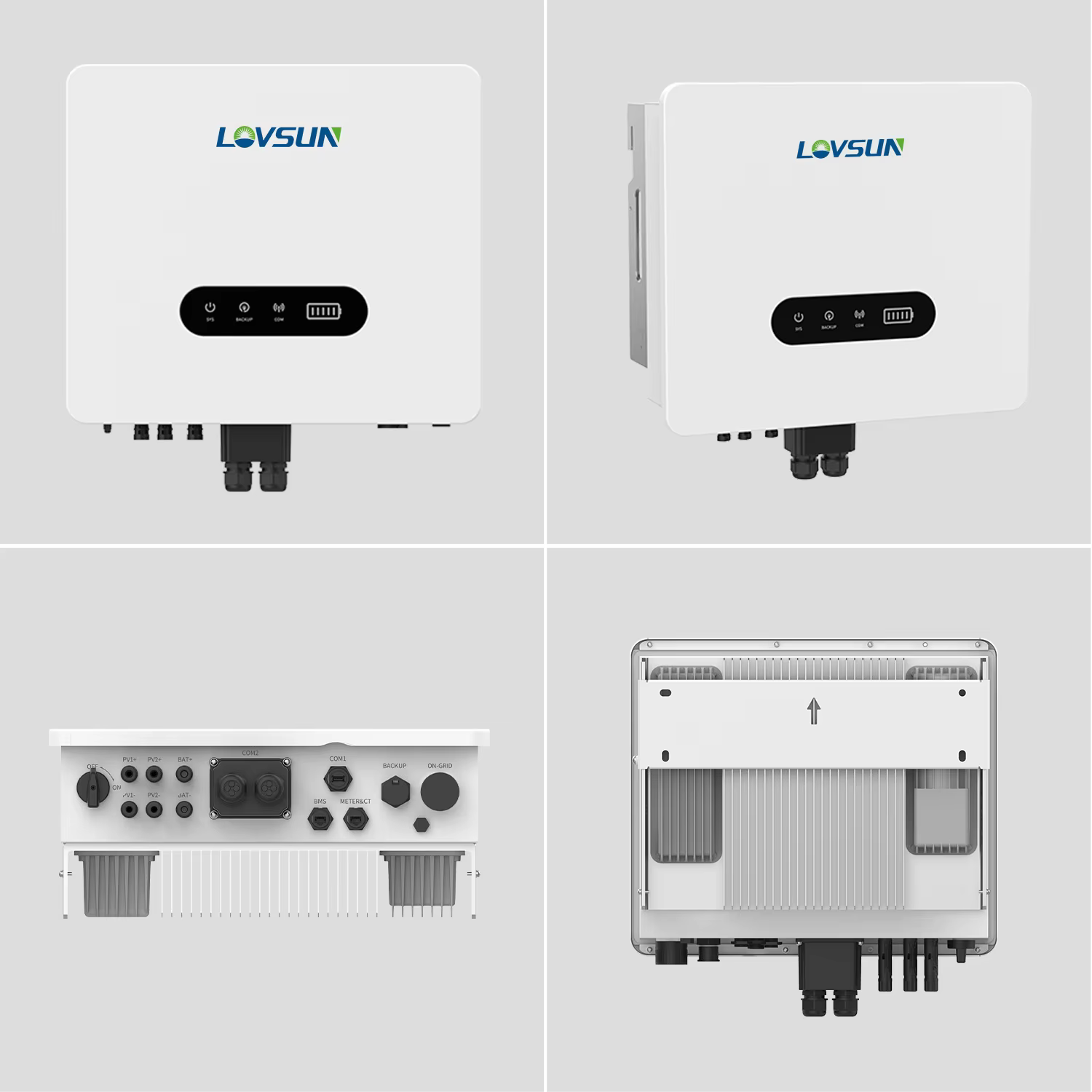

Lovsun IP65 Solar Inverter High Voltage 5kw 6kw 8kw 10kw 12kw Hybrid Solar Inverter for Home Energy Storage System

Product Description

Specification

Model	SUN-TH-HP5K-A1	SUN-TH-HP6K-A1	SUN-TH-HP8K-A1	1SUN-TH-HP10K-A1	SUN-TH-HP12K-A1
Battery Type	Lithium-ion
Battery Voltage Range (V)	130-800
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
Max. PV Input Voltage (V)	1000
Start-up Voltage (V)	180
MPPT Voltage Range (V)	130-950
Rated PV Input Voltage (V)	600
Rated Input/Output Voltage/Range (V)	220 V/380 V; 230 V/400 W,3/N/PE
Noise (dB)	≤30
Ingress Protection(IP) Rating	IP 66
Inverter Topology	Non-Isolated
Weight (kg)	27
Warranty	10 Years
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4,IEC/EN 61000-3-2/12,1EC/EN 61000-3-3/11
Grld Connectlon Standard	VDE 4105、PLEN50549-1:2019.PL NC RFGJRIESD:2021.OVE/TOR，EN50549-1/-10

System Diagram

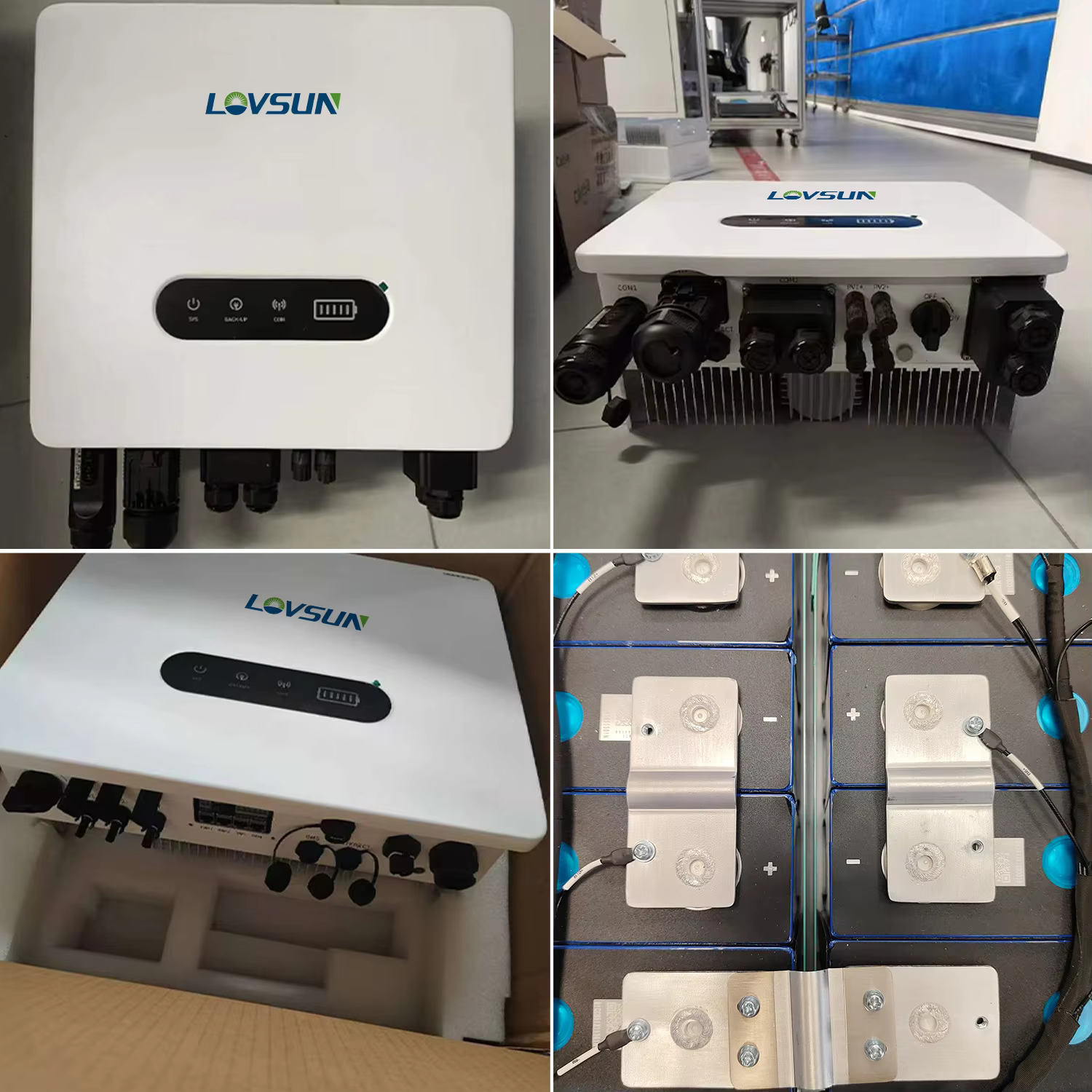

Packing
