Lovsun LifePO4 Lithium Battery Solar System ESS Container 2MWH

Lovsun LifePO4 Lithium Battery Solar System ESS Container 2MWH

Inquiry

  • Overview

  • Inquiry

  • Related Products

Product Description

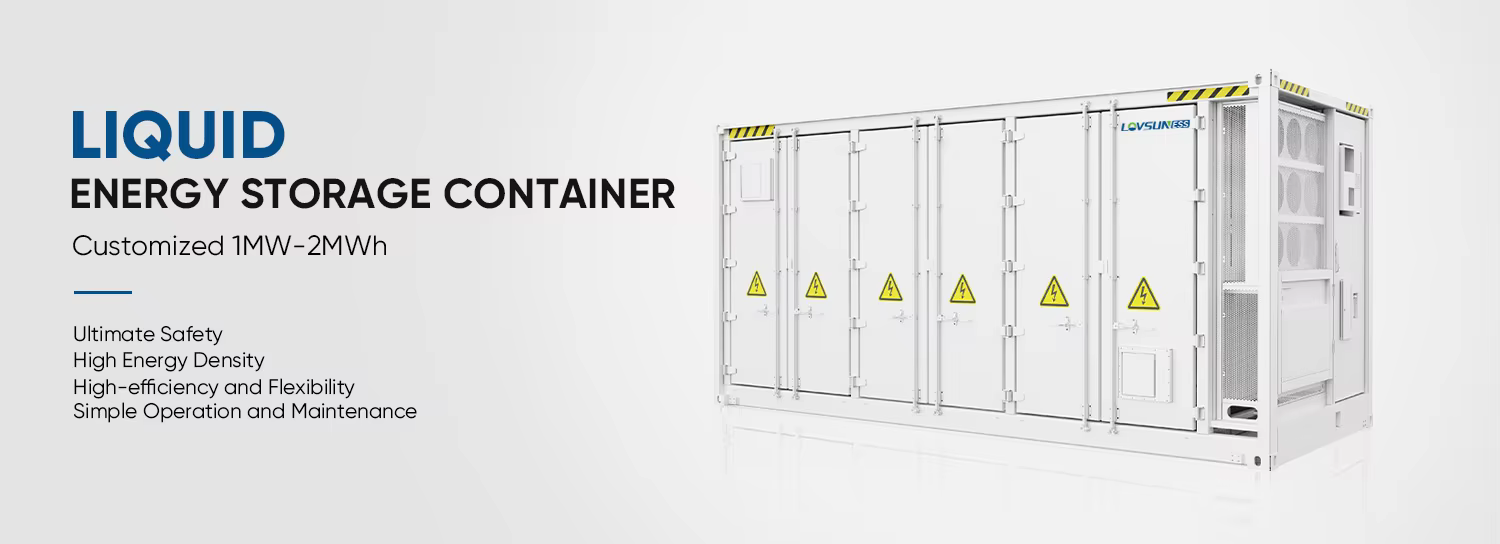

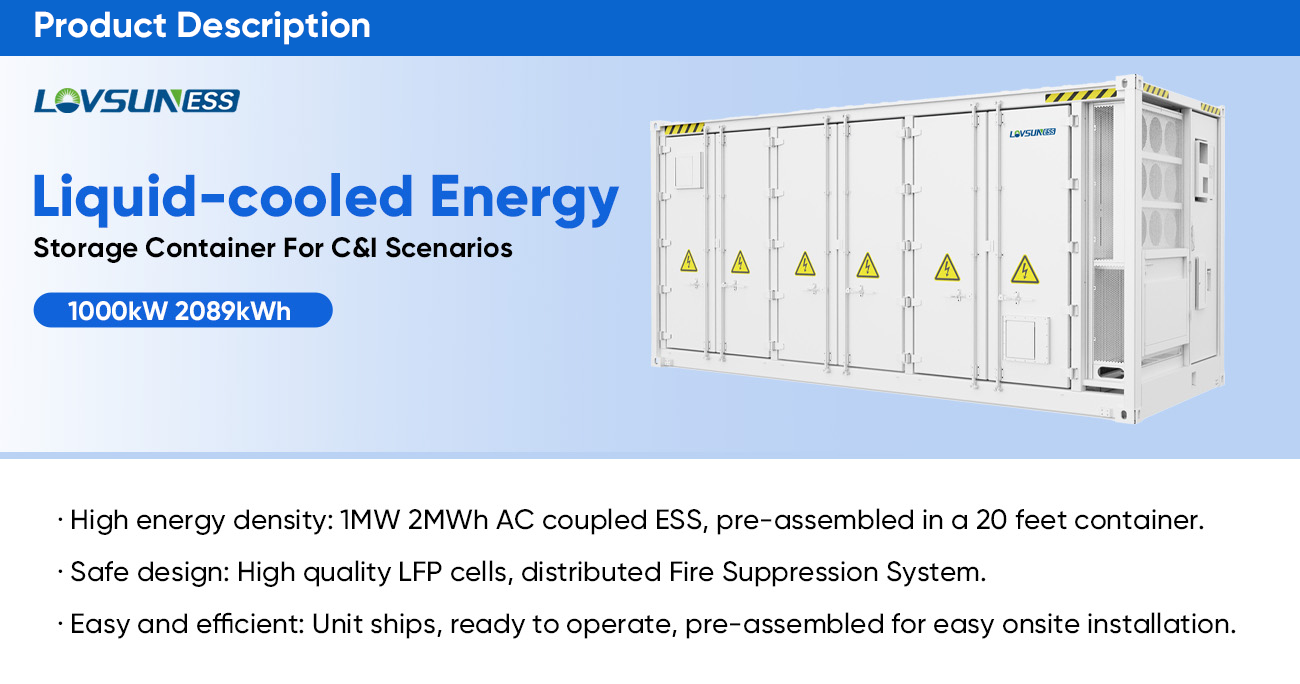

Lovsun LifePO4 Lithium Battery Solar System ESS Container 2MWH manufacture

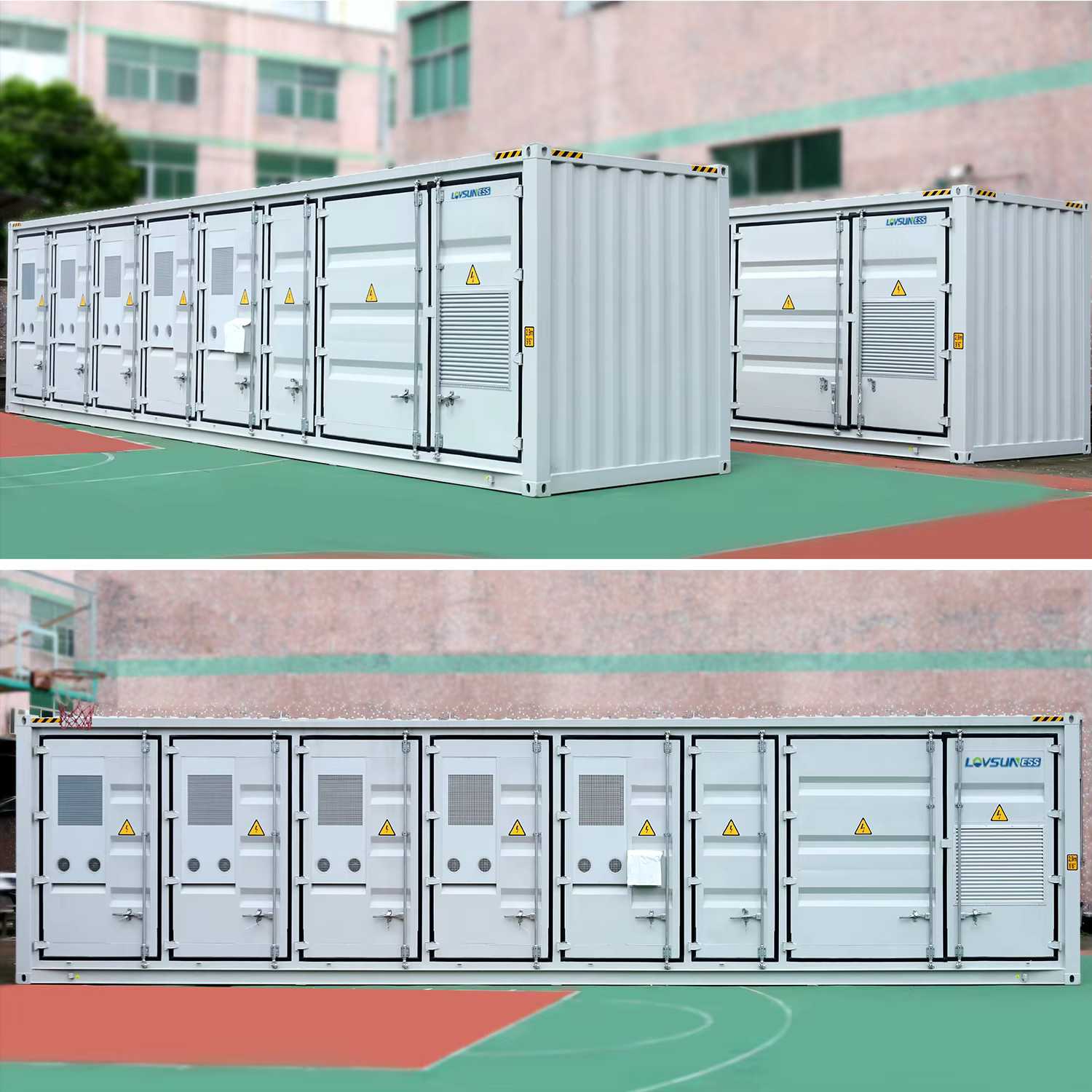

Lovsun LifePO4 Lithium Battery Solar System ESS Container 2MWH details

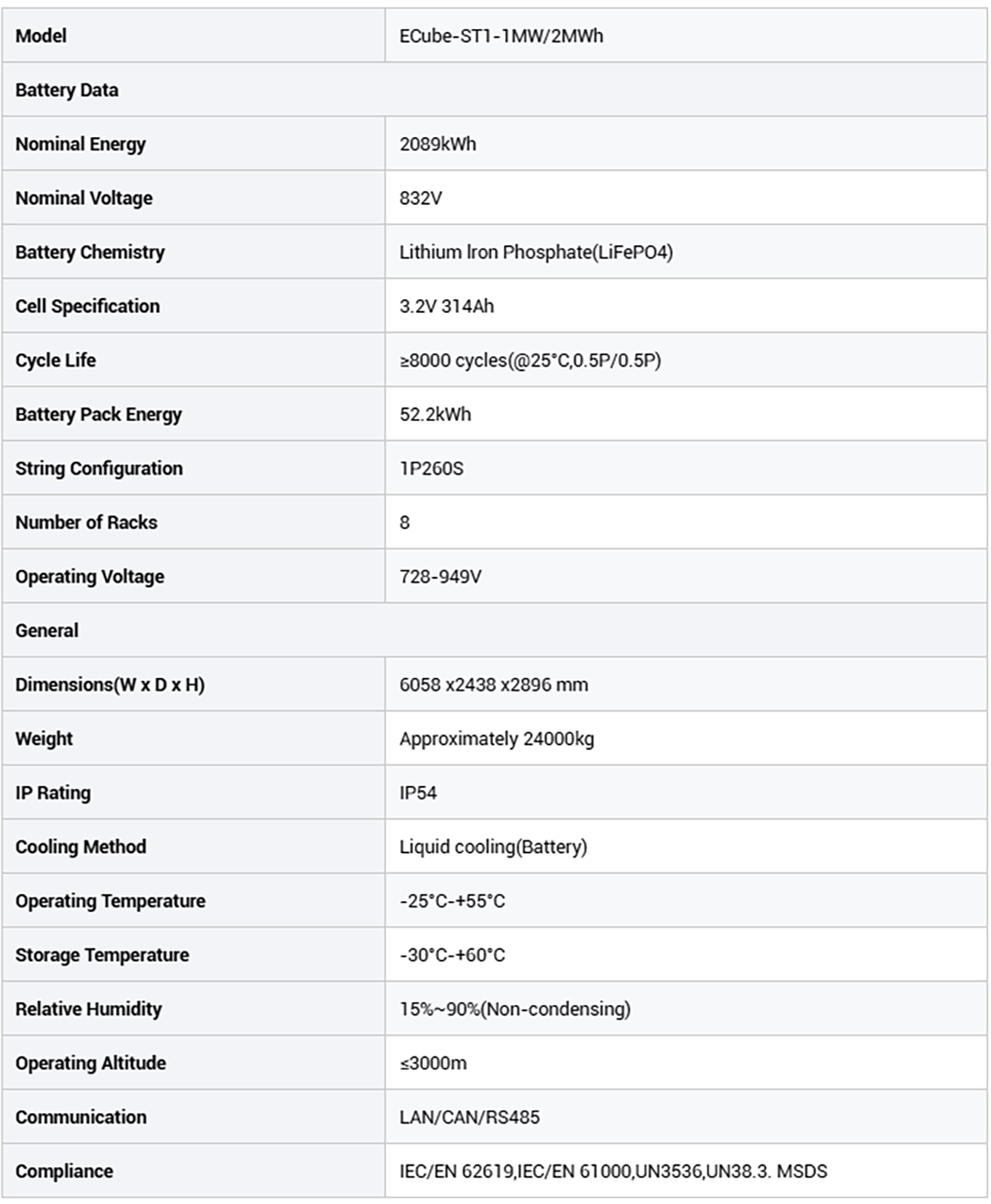

Specifications
Model
ECube-ST1-1MW/2MWh
Battery Data
Nominal Energy
2089kWh
Nominal Voltage
832V
Battery Chemistry
Lithium lron Phosphate(LiFePO4)
Cell Specification
3.2V 314Ah
Cycle Life
≥8000 cycles(@25°C,0.5P/0.5P)
Battery Pack Energy
52.2kWh
String Configuration
1P260S
Number of Racks
8
Operating Voltage
728-949V
General
Dimensions(W x D x H)
6058 x2438 x2896 mm
Weight
Approximately 24000kg
IP Rating
IP54
Cooling Method
Liquid cooling(Battery)
Operating Temperature
-25°C-+55°C
Storage Temperature
-30°C-+60°C
Relative Humidity
15%~90%(Non-condensing)
Operating Altitude
≤3000m
Communication
LAN/CAN/RS485
Compliance
IEC/EN 62619,IEC/EN 61000,UN3536,UN38.3. MSDS
Product Details
Lovsun LifePO4 Lithium Battery Solar System ESS Container 2MWH manufacture

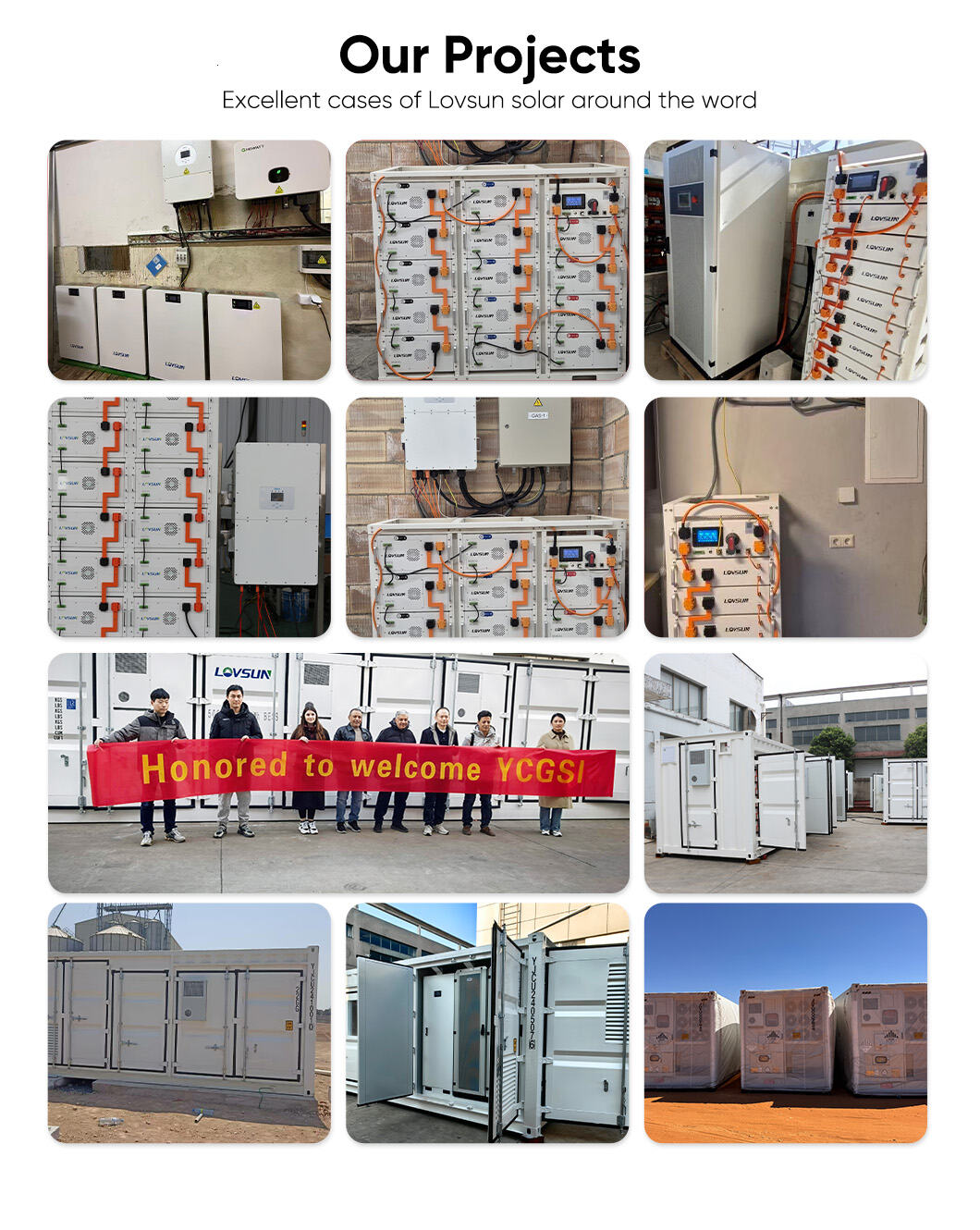

Project Case

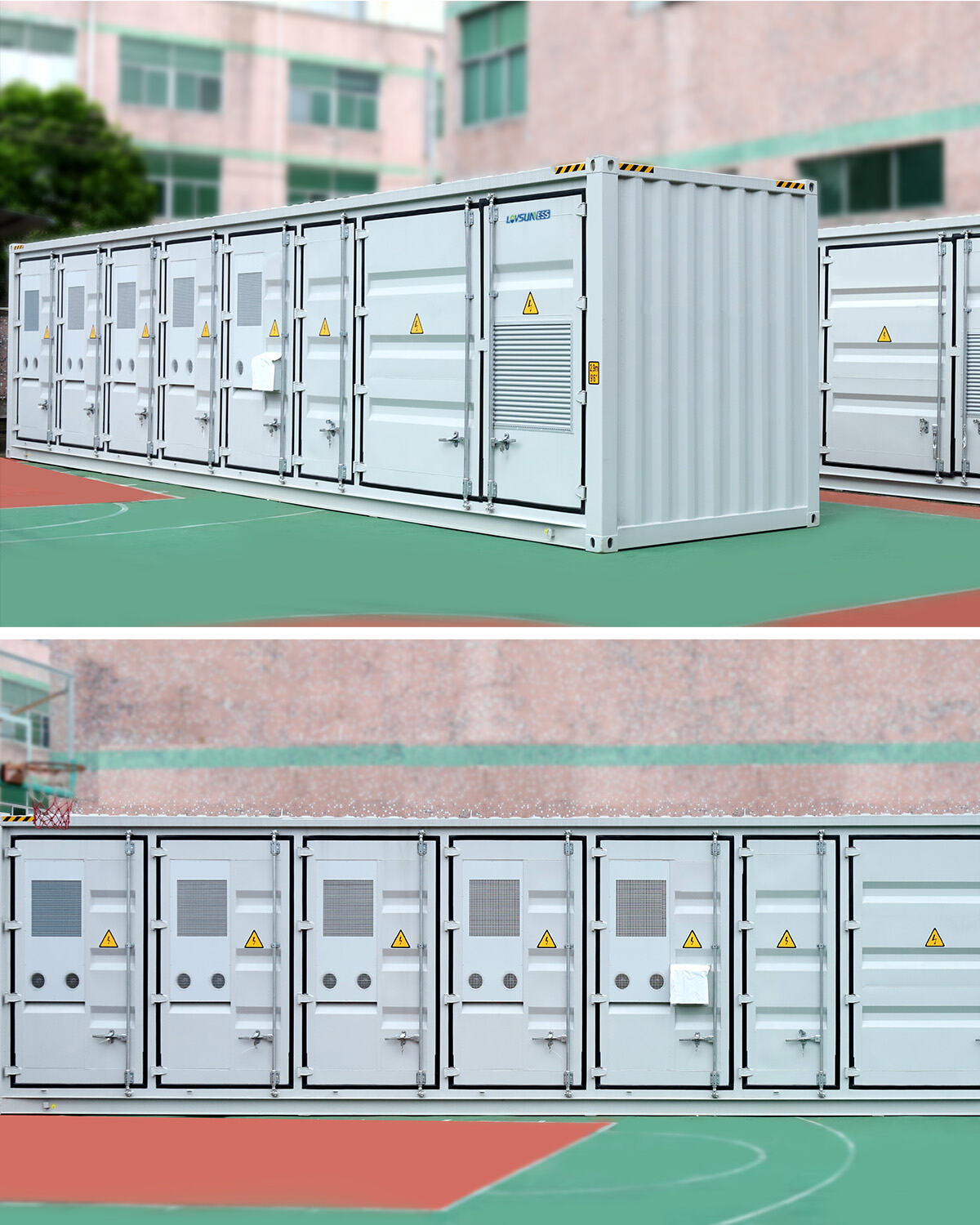

Lovsun LifePO4 Lithium Battery Solar System ESS Container 2MWH details
Lovsun LifePO4 Lithium Battery Solar System ESS Container 2MWH supplier
