Lovsun 125kw 261kwh Liquid-cooled Outdoor Cabinet Energy Storage System

Lovsun 125kw 261kwh Liquid-cooled Outdoor Cabinet Energy Storage System

Inquiry

  • Overview

  • Inquiry

  • Related Products

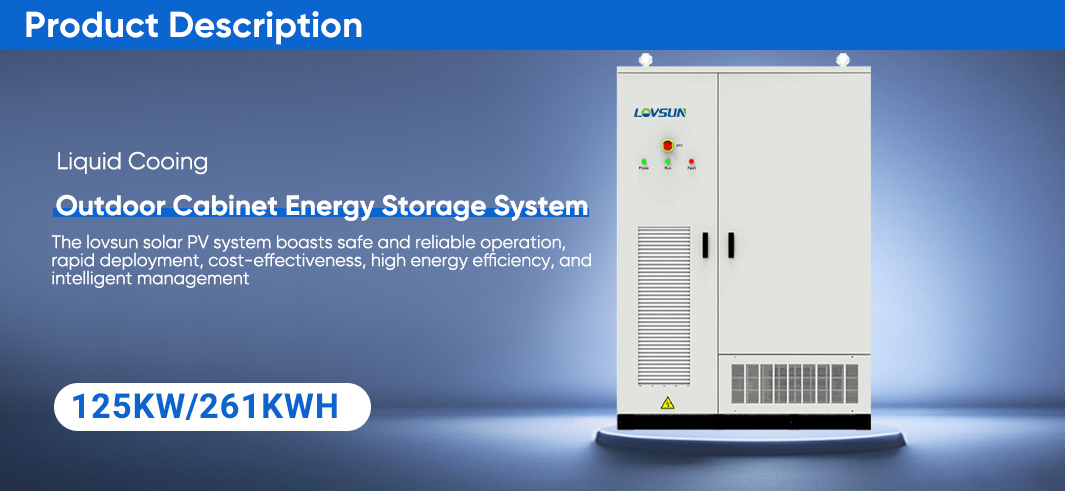

Product Description

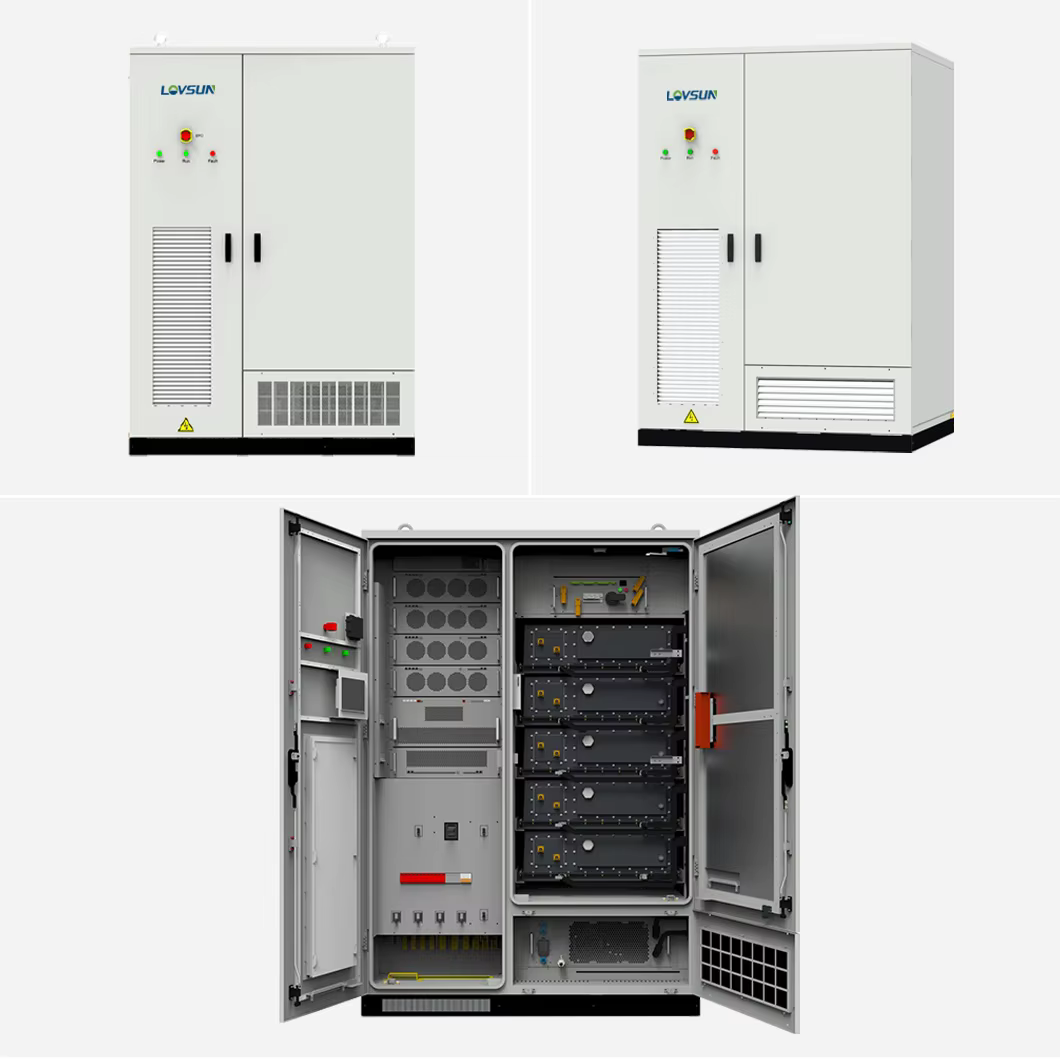

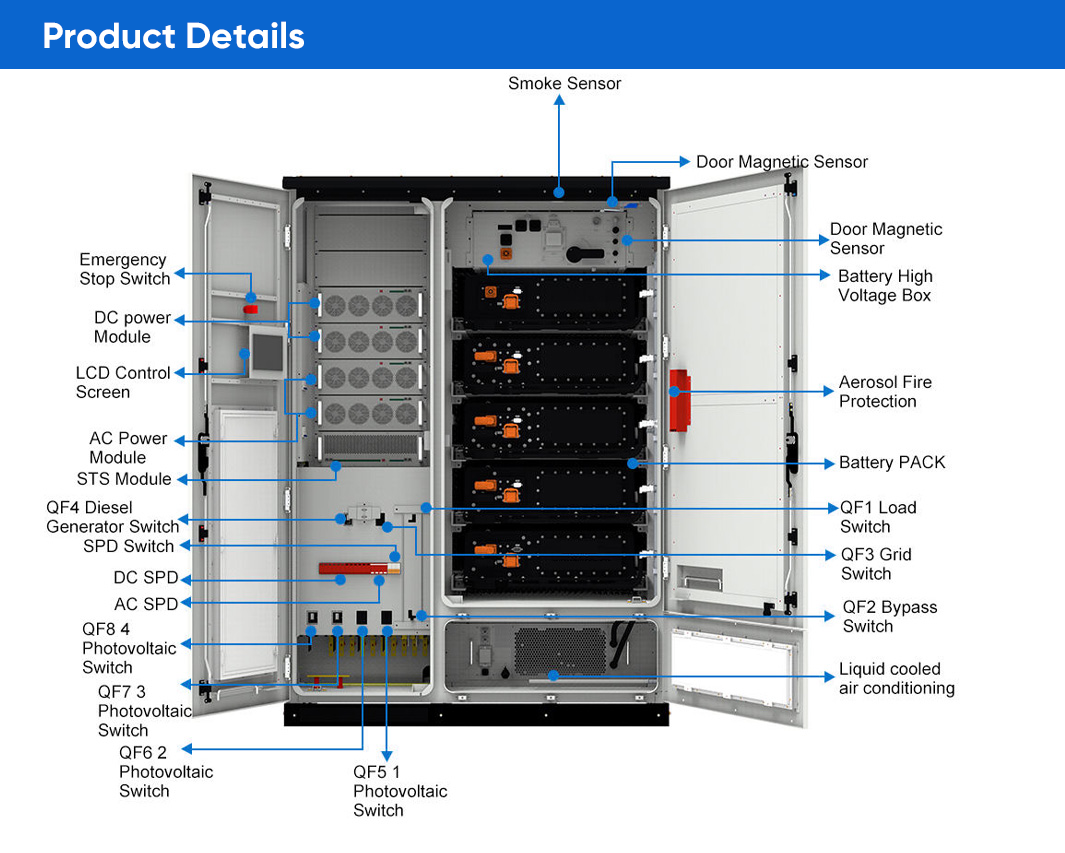

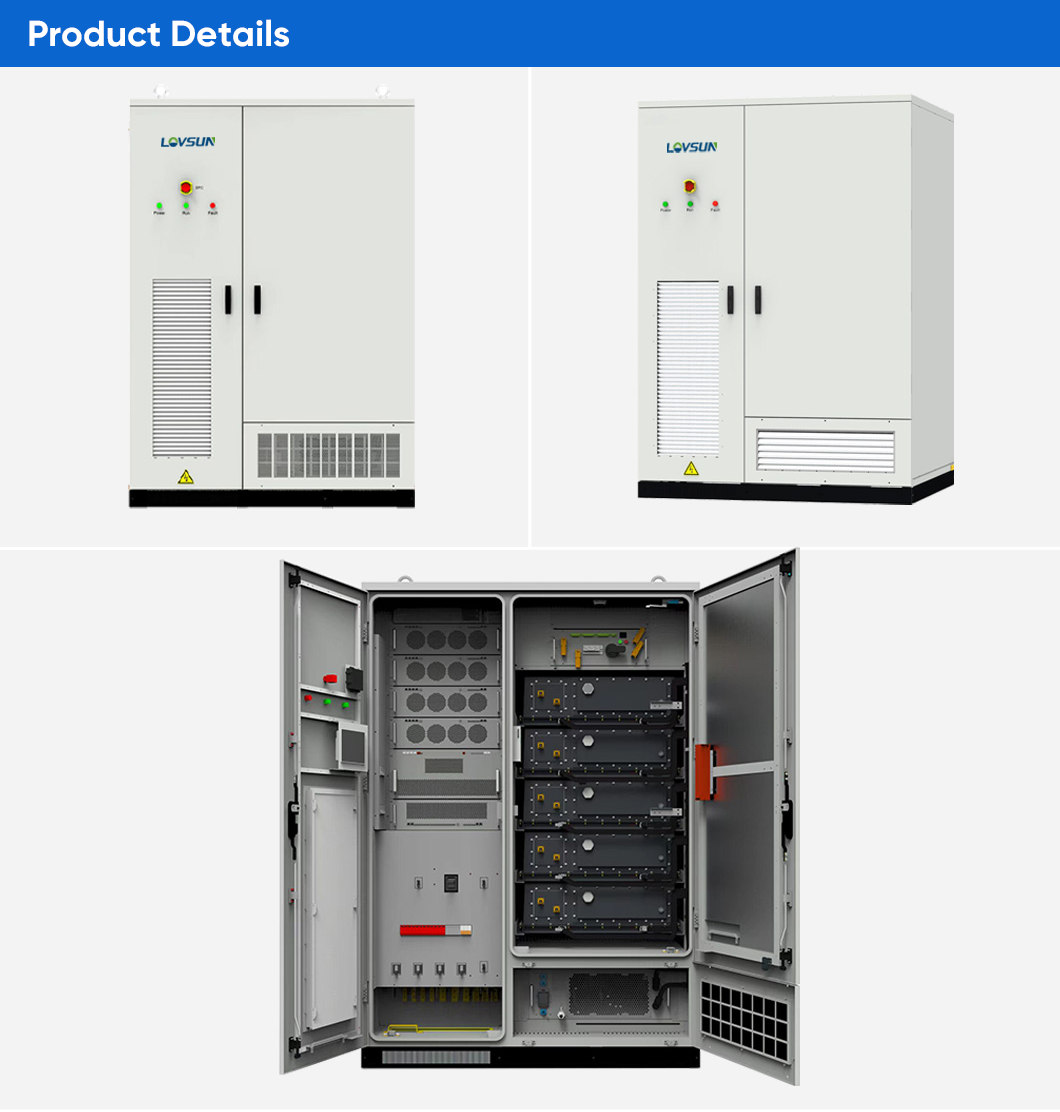

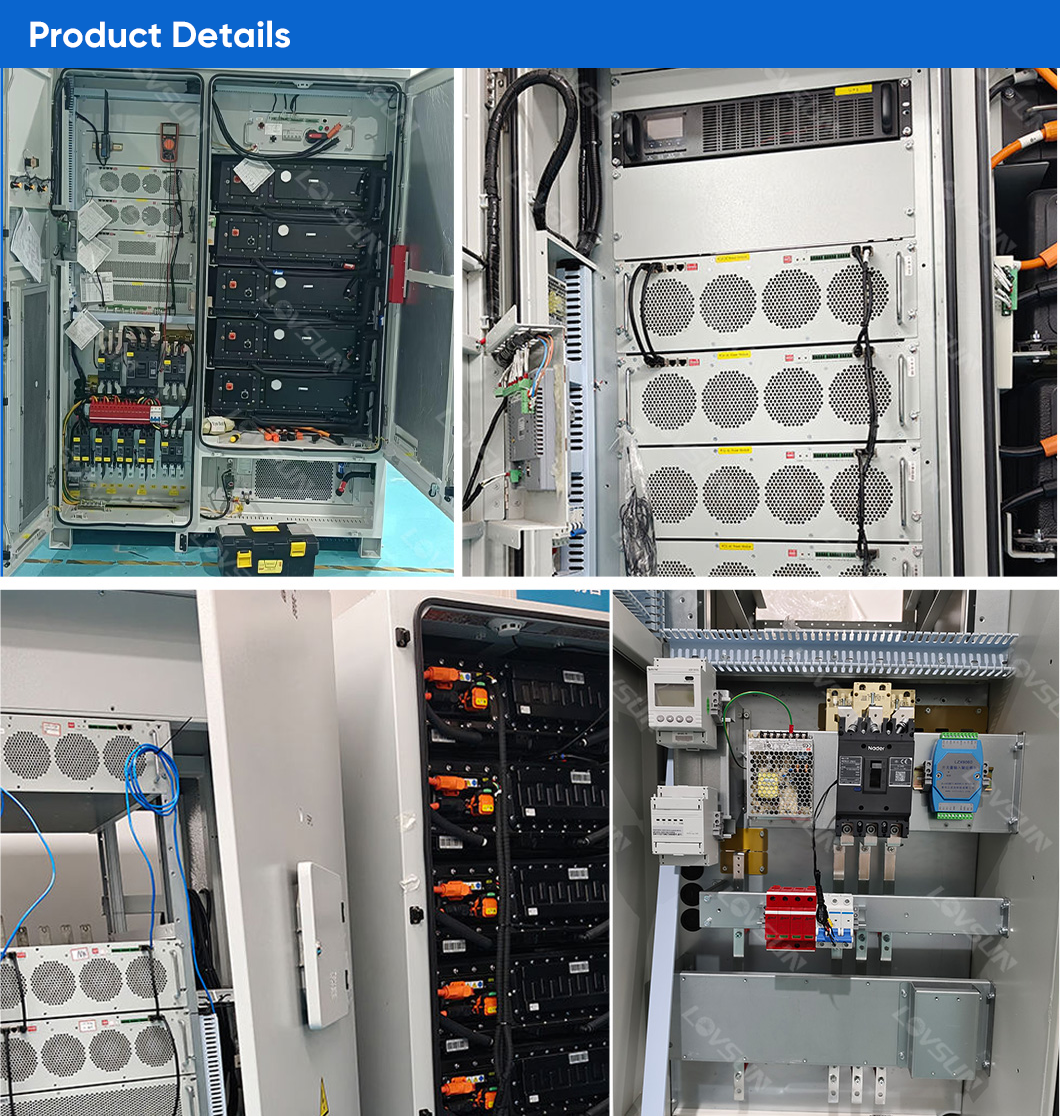

Product Details
Specification

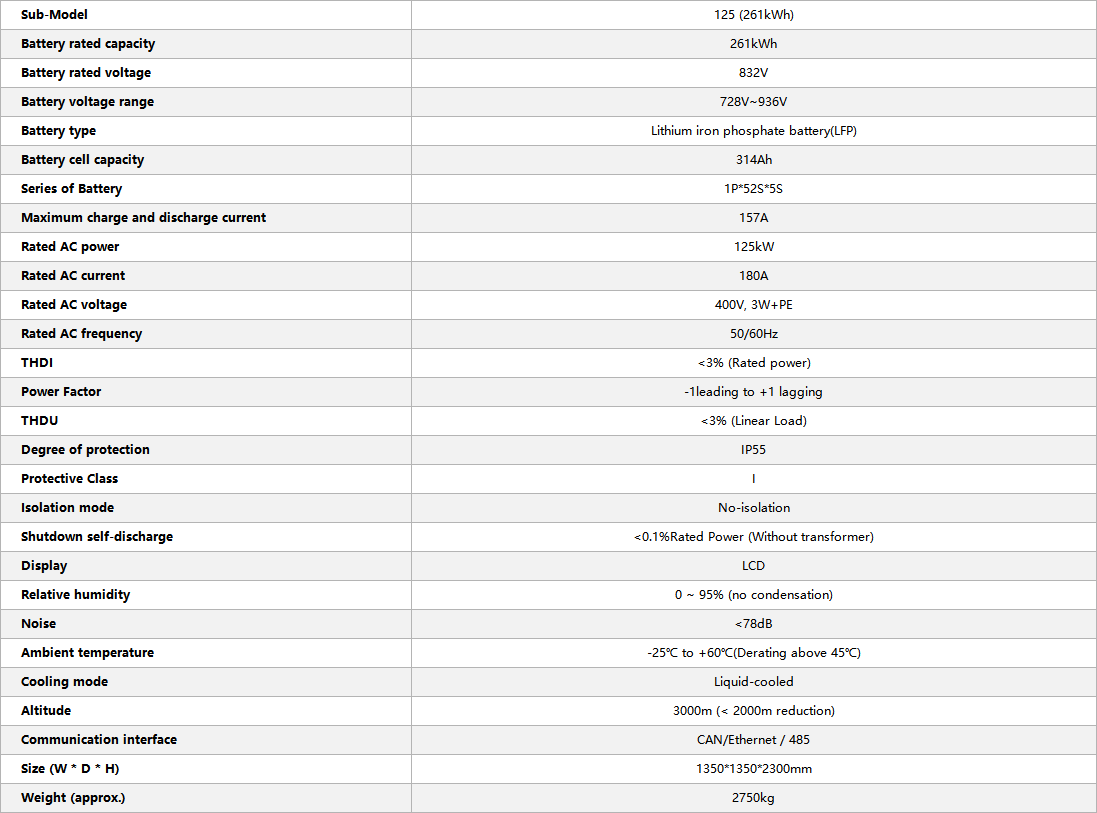

Outdoor Cabinet ESS Specifications
Rated Battery Capacity
261kWh
Rated System Voltage
832V
Battery Type
LFP
Series of Battery
1P*52S*5S
Battery Cell
314Ah
Maximum charge and discharge current
157A
Photovoltaic voltage range
200-450V
Rated AC power
125KW
Rated AC current
180A
Rated AC voltage
400V, 3W+N+PE/3W+PE
Rated AC frequency
50/60Hz
THDI
＜3%（Rated power）
Protection level
IP 55
Isolation mode
Isolation transformer
Shutdown self-discharge
＜0.1% Rated power (Without transformer)
Display
LCD
Ambient temperature
-25℃ to +60℃(with derating at temperatures above 45℃)
Cooling mode
Liquid-cooled
Communication interface
CAN/Ethernet/485
Size (W * D * H)
1600*1350*2300mm
Weight (approx.)
3330kg

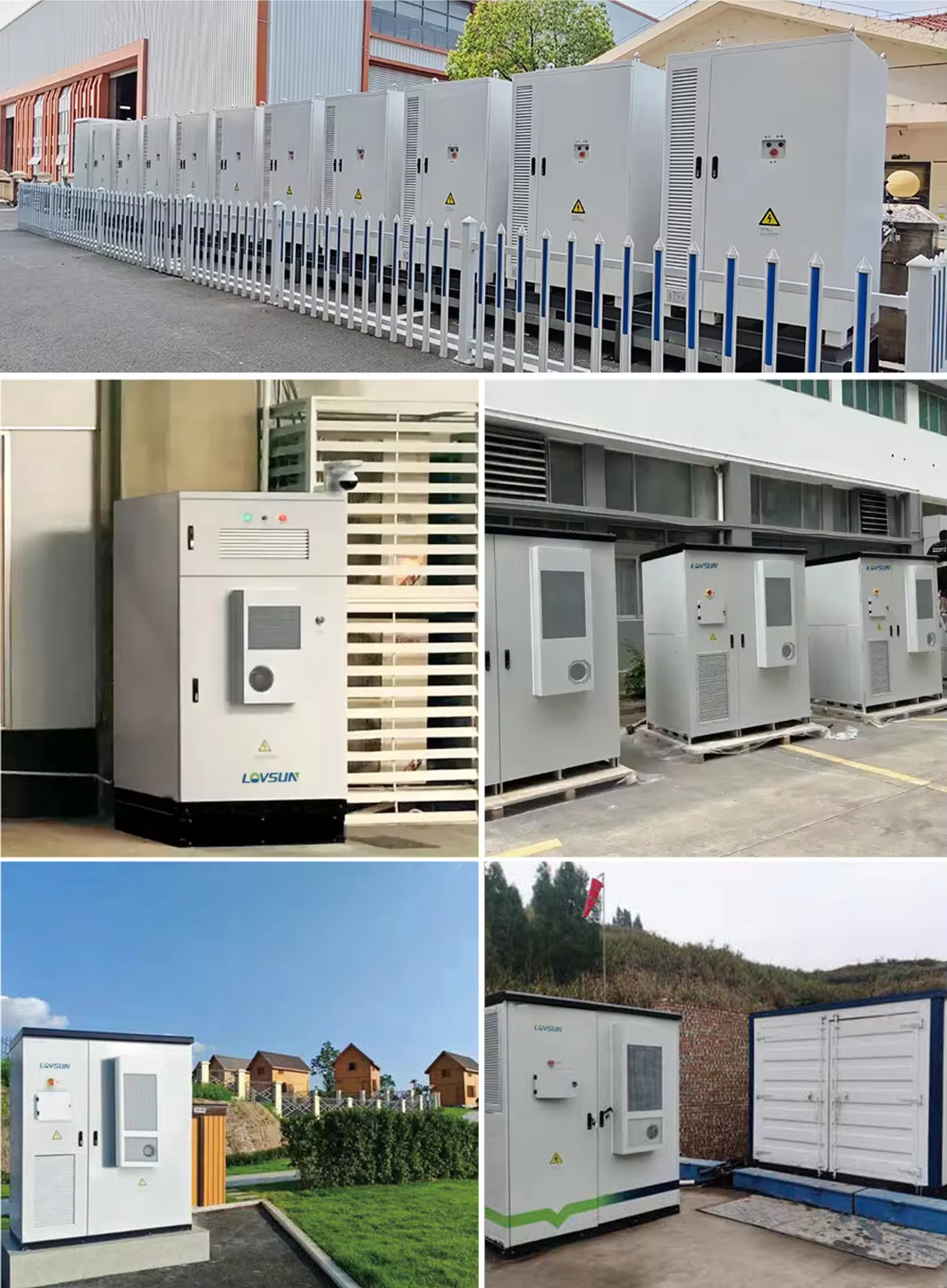

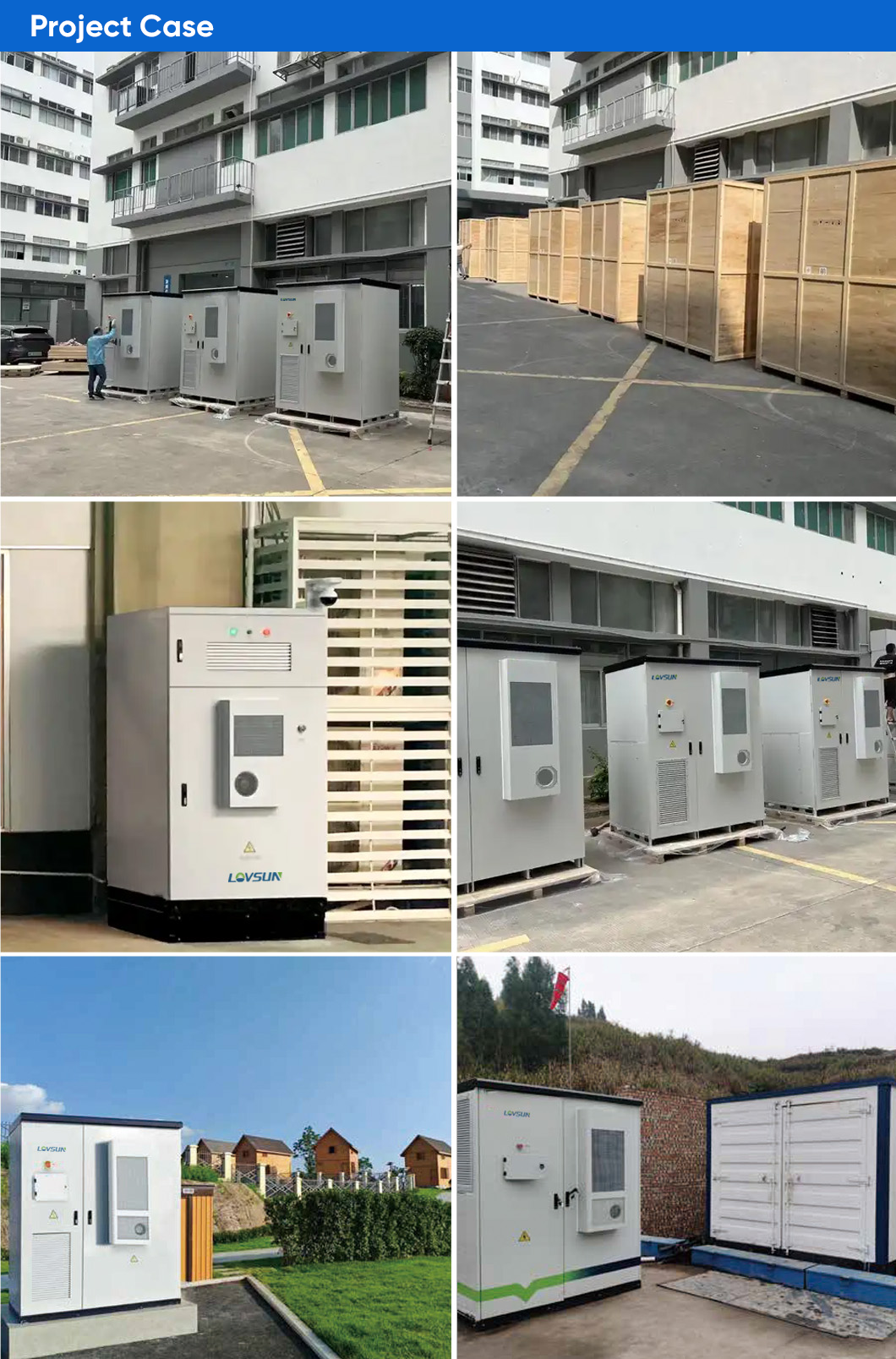

Project Case
