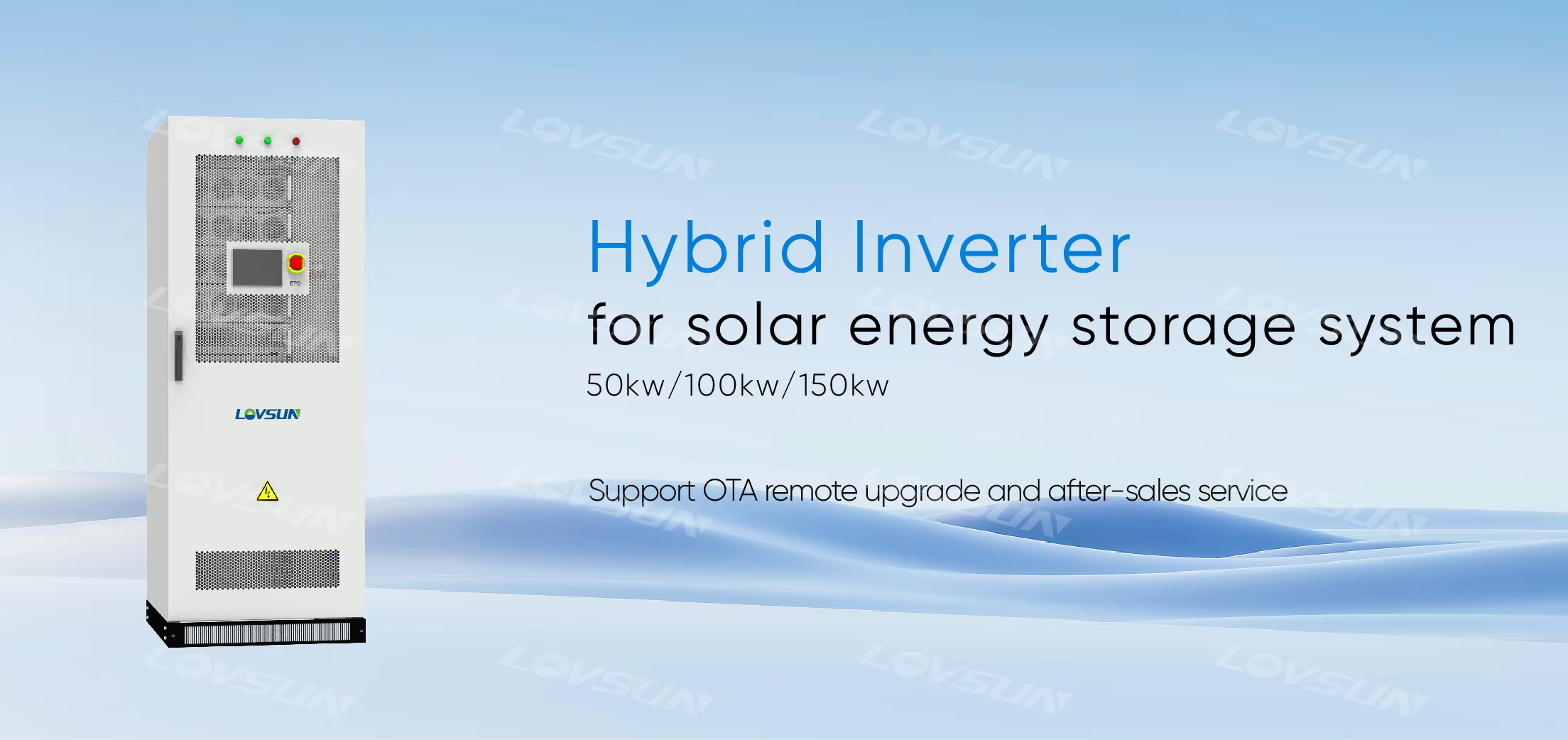

3 Phase 380V Inverter Solar Hybrid System 50kW 100kW 150kW String Hybrid Solar Inverter for Solar Energy Systems

3 Phase 380V Inverter Solar Hybrid System 50kW 100kW 150kW String Hybrid Solar Inverter for Solar Energy Systems

Inquiry

  • Overview

  • Inquiry

  • Related Products

Product Description
Specification
Model
Monet-50TS（DC50）
Monet-100TS （DC100）
Monet-150TS（DC150）
Grid port
Rated power
50kW
100kW
150kW
Max. power
55kW
110kW
175kW
Rated current
72A
144A
216A
Max. current
79A
160A
240A
Rated voltage
400Vac， 3W+N+PE
Rated frequency
50/60Hz(±5Hz)
Photovoltaic(PV) port
Max. PV input voltage
Minimum battery voltage -50V
Max. PV input power
50kW
100kW
150kW
MPPT quantity
1/2
2/4
3/6
Battery port
Battery voltage range
600~950V
General Parameters
Degree of protection
IP21（Indoor）/IP54（Outdoor）
Protective Class
I
Isolation mode
Transformerisolation

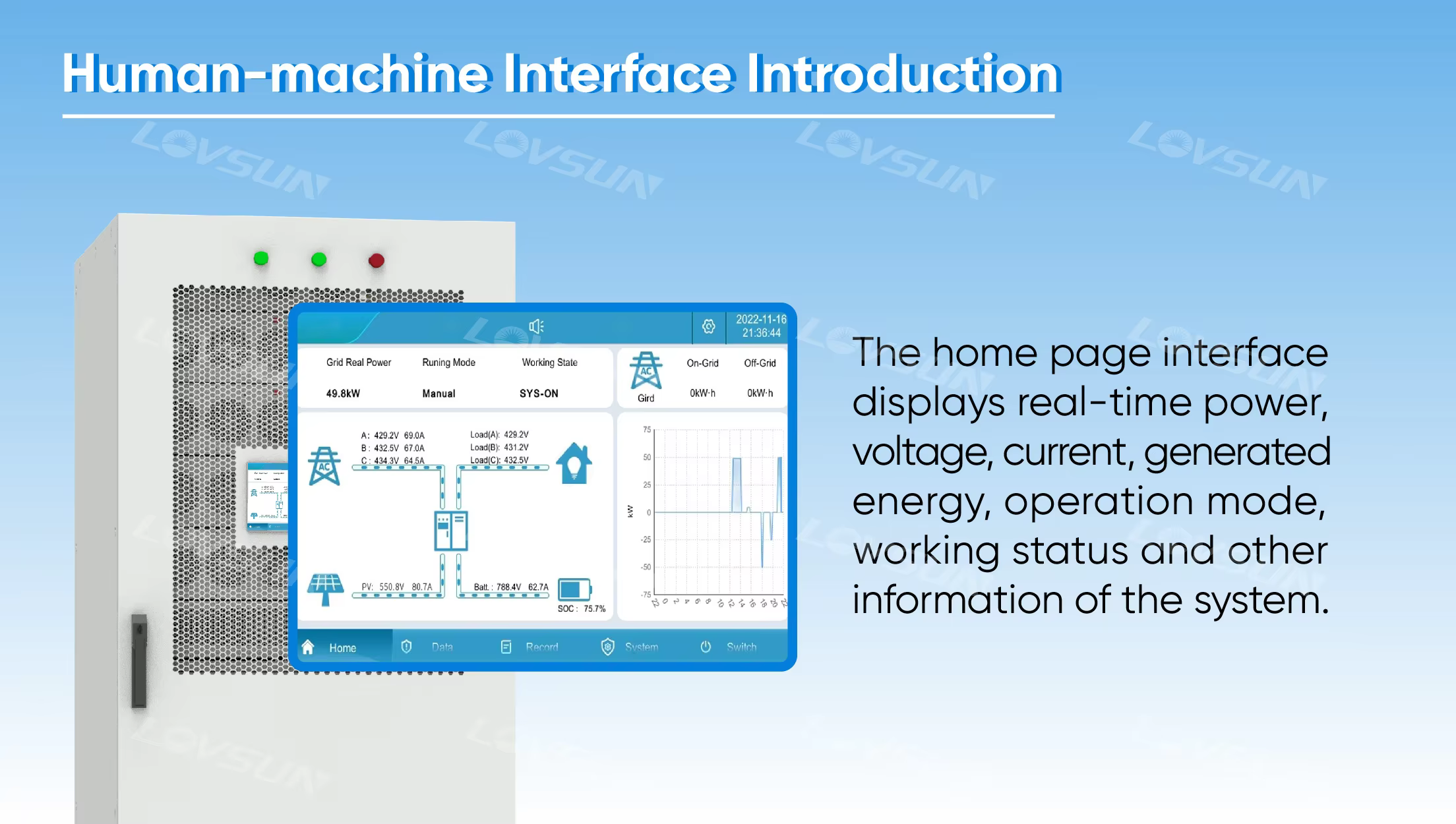

Display
LCD
Ambient temperature
-25℃ to +60℃(Derating above 45℃)
Cooling mode
Inteligent air-cooled
Altitude
3000m(> 2000m reduction)
BMS Communication
CAN
EMS Communication
RS485/CAN/Ethernet

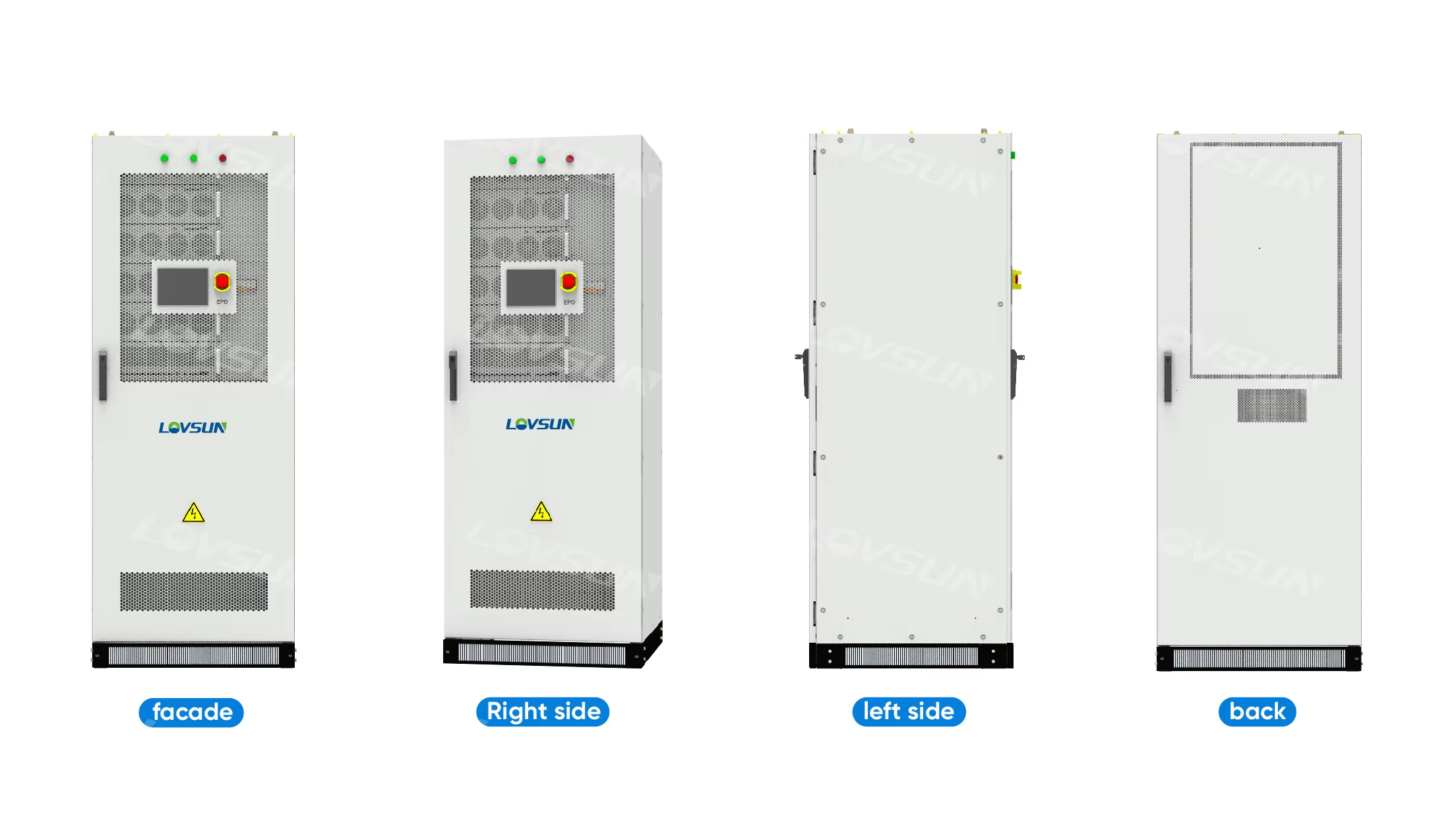

Dimensions（W*D*H）
800*800*2100mm（Indoor）；900*1000*2150mm（Outdoor）
Weight(approx.)
1200kg/1350kg
1400kg/1600kg
1590kg/ 1790kg
Features
Certificate
